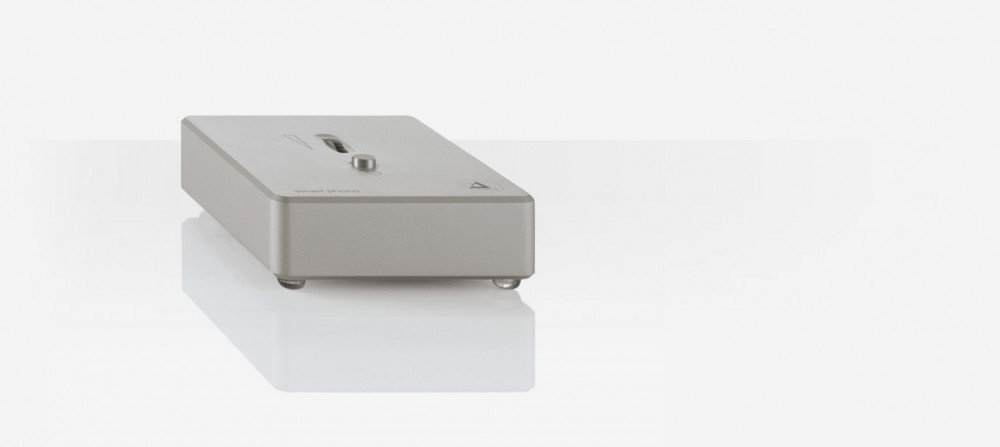

CLEARAUDIO SMART PHONO V2

CLEARAUDIO SMART PHONO V2

Från
4 990 kr
klarna-logo
Välj utförande
4 990 kr 6 590 kr Skyltex
6 590 kr Leverantörslager
6 590 kr Finns för demo
Lägg i varukorgen
Leverantörslager (Vanligtvis 2-5 arbetsdagar för varor som finns i lager hos leverantören.)
Fri frakt!

Fler bilder

Produktbeskrivning

A minimalist aluminium housing that contains one of the best sounding phonostages in its market. Up to 54 decibels gain at one kilohertz and an extremely linear frequency response deliver unprecedented quality at this price point. For MM and MC cartridges there are two separate circuit designs using SMD technology, which are selected by a slide switch on the underside.

Länk till tillverkare

Innehållet kan inte visas

Aktivera funktionella tredjepartstjänster




SPECIFIKATIONER

  • AMPLIFICATION @ 1 KHZ 34 dB (MM-Mode)65 dB (MC-Mode)
  • INPUT IMPEDANCE 47 kOhm / 150pF, 250pF, 400pF / MM50 OHm, 100 Ohm, 500 Ohm, 1 KOhm, 5kOhm/150pF, 250pF, 400pF / MC
  • MM / MC INPUT switchable (at bottom)
  • SUBSONIC FILTER switchable (at bottom)
  • RIAA delay time: 75 μs / 318 μs / 3180 μs
  • RIAA ACCURACY ± 0.3 dB @ 10 Hz - 100 kHz
  • THD < 0,004% MC (\"A\" @ 1 kHz / -1 dB @ MAX)
  • HEADROOM 18 dB / MC (Gain Control on MAX)
  • SIGNAL TO NOISE RATIO 72 dB / MC (\"A\" weighted)85 dB / MM (\"A\" weighted)
  • CHANNEL SEPARATION > 90 dB @ 1 kHz
  • MAX. OUTPUT VOLTAGE 10 V eff. (1 kHz)
  • POWER CONSUMPTION Max. consumption: 2.7 WattConsumption in operation: 2.7 Watt
  • Off mode: 0.0 Watt
  • POWER SUPPLY ± 18 V DC / 300 mA (external power supply)
  • OUTPUT CONNECTIONS unbalanced (RCA)
  • WEIGHT Approx. 620 g (Preamp and power supply)
  • DIMENSIONS (W/D/H in inches) 3.74 x 4.92 x 1.34
  • DIMENSIONS (W/D/H in mm) 95 x 125 x 34
