S50 Network Switch
Overview
We have updated the features and performance of the highly acclaimed “S100,” a network switch designed specifically for audio streaming, while maintaining its compact size and condensing its functionality. The S50 is DELA’s new standard switch, evolving from the popular “S100” and “S100/2.” It features a built-in power supply and a wide range of configuration options.
Features
Connectivity
3x SFP+/SFP ports* (10Gbps or 1Gbps, compatible with DELA “C1” cable)
6x RJ45 LAN ports (1Gbps, 100Mbps or 10Mbps, compatible with DELA “C100” cable)
Additionally, it includes a USB power output port for accessories. (Not for data transfering)
Power Supply
The power supply section adopts DELA’s Clear Dynamic Power Supply, inherited from the MELCO Music Library N50.
The rear panel is equipped with an IEC inlet.
Port Management
S50 inherits the well-received 100Mbps ports from the S100, and now all RJ-45 ports can be freely configured to OFF/10M/100M/1G.
Not only can the speed be changed, but unused ports can be electrically completely shut down. This allows you to optimize the network according to the usage status of the connected devices.
LED Indicators

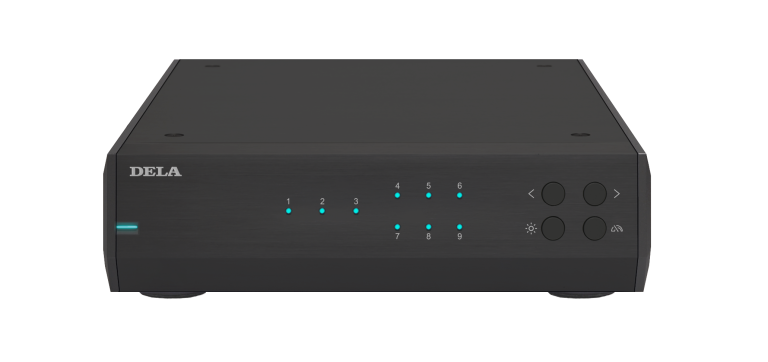

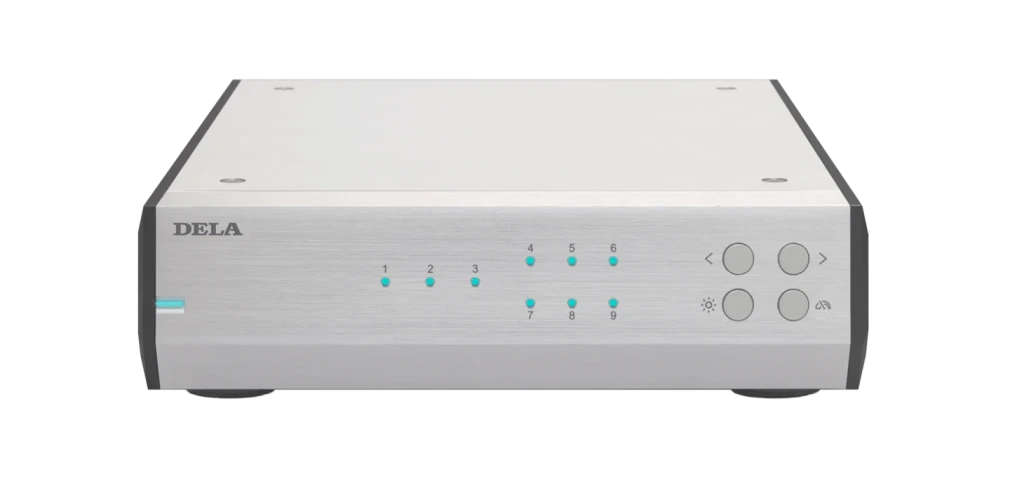

The communication speed of each port is displayed using color LEDs on the front panel, with 1Gbps (light blue) as the standard, allowing for easy visual confirmation of speed changes.
Not only the port LEDs, but also Power LED can be dimmed by the button on the front panel.

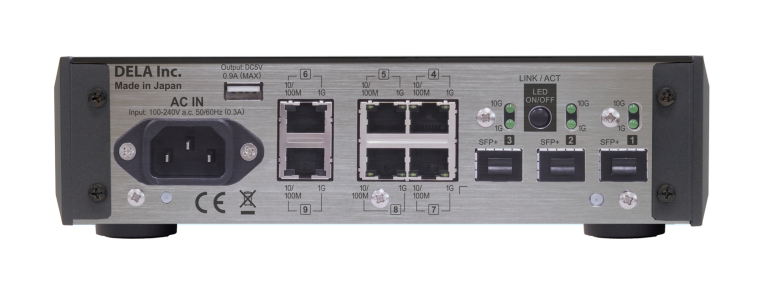

Rear LEDs show connection and speed.
After confirming the connections, you can turn off the LEDs by pressing a button on the rear panel, eliminating the influence of LED control.
Design
S50 adopt the user-friendly half-size chassis. (215 mm wide)
The LEDs positioned symmetrically opposite each port on the rear panel are designed to enable intuitive switching of port speeds and port deactivation.
Made in Japan
Hand-assembled by skilled technicians.
Manufactured in Nagoya, Aichi Prefecture.
