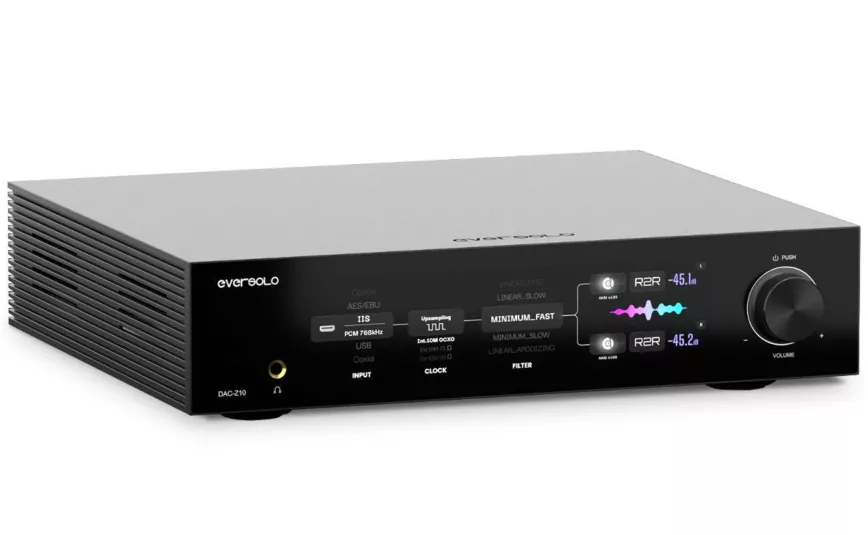

DAC-Z10
Precision EngineeringBuilt for Authentic Sound

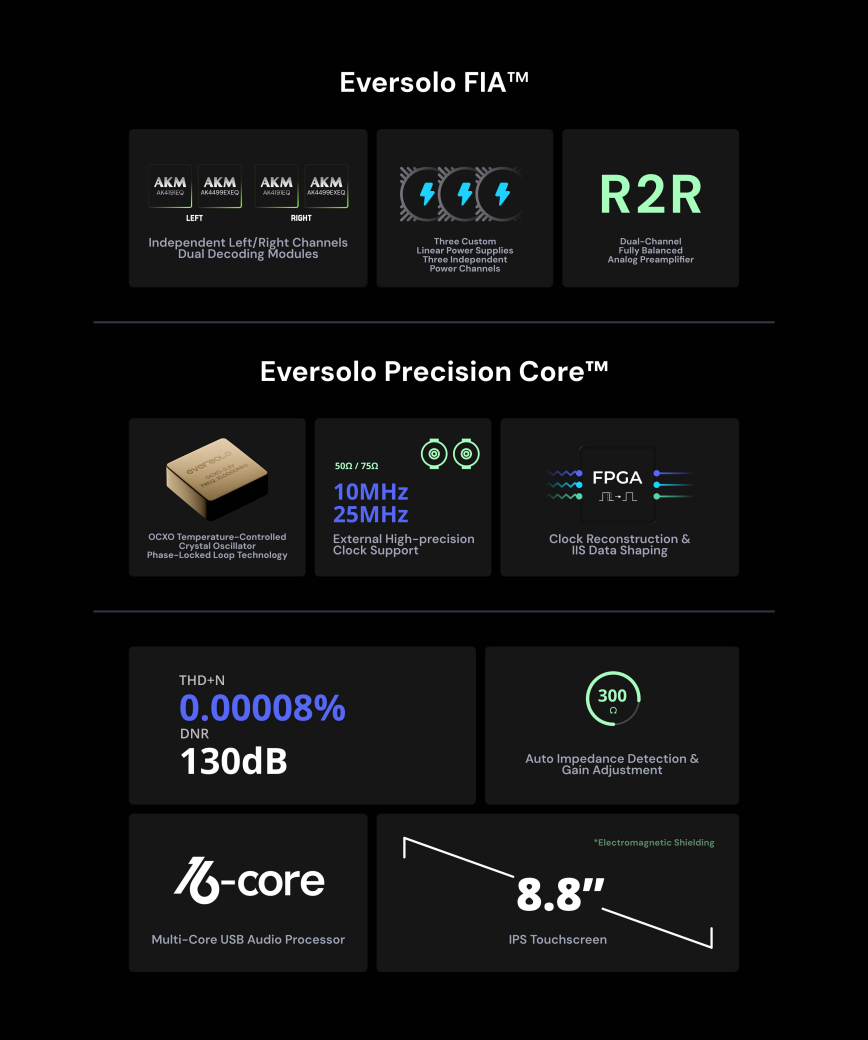

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment. Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

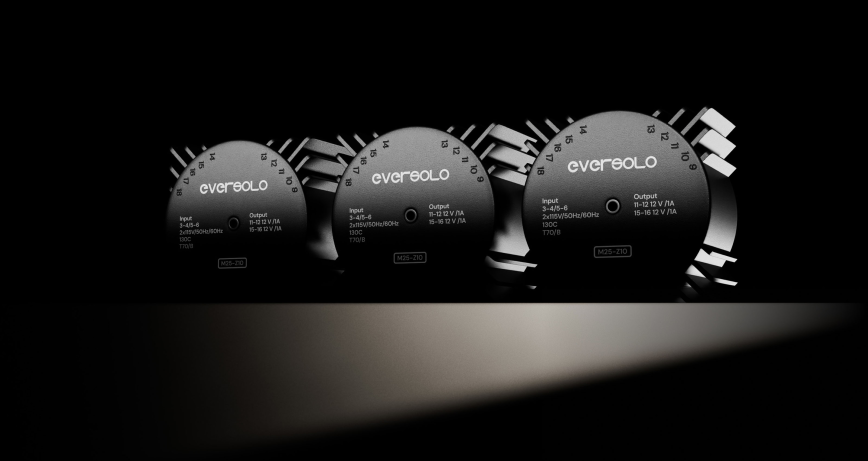

Three Independent Power Supplies
With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV. This design minimizes interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.
Dual Decoding Modules
Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.
R2R Volume Control
The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.
Fully Balanced Preamplifier
The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.
Eversolo Precision Core™
Accurate Clock System
OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop TechnologyExternal 10 MHz & 25 MHz High-Precision Clock Support | FPGA Clock Reconstruction
OCXO Temperature-Controlled Crystal Oscillator
Phase-Locked Loop Technology
The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

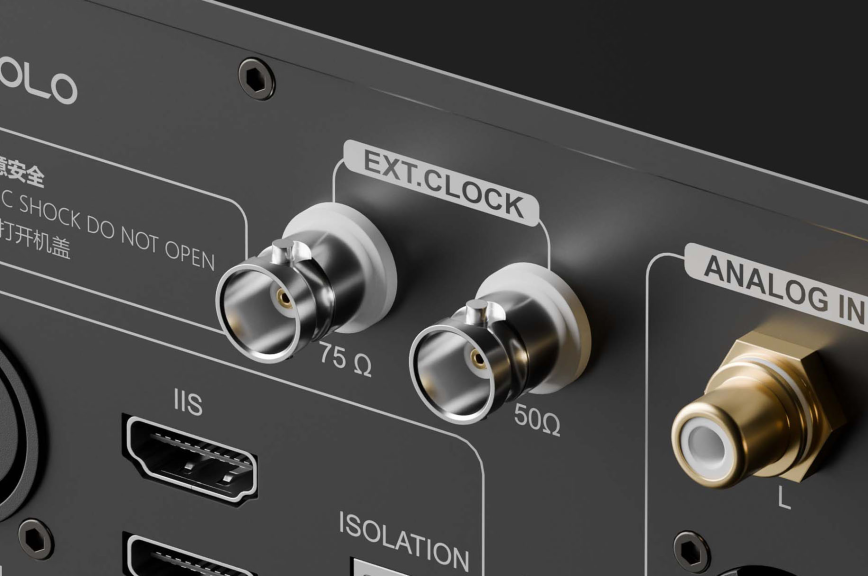

External Clock Support
Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.
HDMI ARC Integration
The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.
6.35mm Headphone Amplifier Module
The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.
High Quality Bluetooth Module
The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.
