GOLDRING E3

The Goldring philosophy is to promote the accurate replication of the original record production
1 590 kr
Lägsta priset senaste 30 dagarna
1 590 kr
klarna-logo
Att låna kostar pengar!

Om du inte kan betala tillbaka skulden i tid riskerar du en betalningsanmärkning. Det kan leda till svårigheter att få hyra bostad, teckna abonnemang och få nya lån. För stöd, vänd dig till budget- och skuldrådgivningen i din kommun. Kontaktuppgifter finns på konsumentverket.se.

Lägg i varukorgen
Mer produktinformation
Leverantörslager (Vanligtvis 2-5 arbetsdagar för varor som finns i lager hos leverantören.)
Garanti i 24 månader

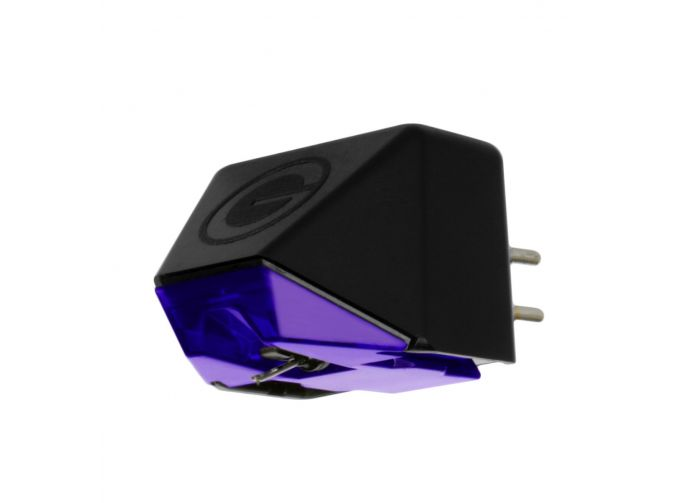

Goldring E3

The Goldring philosophy is to promote the accurate replication of the original record production, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. With the versatile E Series, this is easy to achieve; each is designed to be simple to fit to the majority of budget to medium priced turntables.The E3 cartridge, representing the top of the range features the same aluminium cantilever as the E2, but benefits from a superior, bonded, super-elliptical (0.3 x 0.7 mil) stylus. This gives it better high frequency detail retrieval over ordinary elliptical (0.4 x 0.7 mil) or spherical (0.6 mil) types due to its smaller front-to-back radius. The main effect is the reduction of sibilance, especially in high level vocal recordings

Magnetic Duplex Technology™
All cartridges in the range feature Magnetic Duplex Technology™-a 'dual magnet' generator assembly with an identical geometry to that of the original cutting head. This means it can more accurately reproduce the stereo information in the record groove, providing better channel separation and a more involving and musical sound stage.



Expert Adjustment
The E-series cartridges have been designed to allow micro-adjustments to be made during production using a special adjustment screw. This means the cartridge can be safely installed in a typical turntable because the angle that the stylus makes with the record surface has been pre-set. The result is an optimised channel balance with zero degrees of horizontal tracking adjustment required. This ensures a consistent and reassuring performance for the life of the product.



Stylus/Cantilever
Featuring spherical styli with a choice of cantilevers, the E1 and E2 models are ideal as an upgrade to any budget, pre-fitted or obsolete cartridge. The E3 model with its re­fined super elliptical stylus is a worthwhile upgrade for those wishing to squeeze even more information and detail from the record groove.



Modell E3
Varumärke
Jämför produkt

Colour
Purple

Cantilever Type
Aluminium

Stylus Type
Bonded Elliptical

Stylus Tracking Radius
10 µm (0.4 mil)

Equivalent tip mass
0.7 mg

Frequency Response
20 Hz – 20 kHz ± 3 dB

Frequency Range
12 Hz – 25 kHz

Channel Imbalance
1.5 dB max at 1 kHz

Channel Separation
20 dB min at 1 kHz

Sensitivity
3.5 mV ± 3 dB at 5 cm/s lateral

Static Compliance
20 mm/N

Trackability
70 µm

Vertical Tracking Angle
24 °

Load Resistance
47 kΩ

Load Capacitance
100 - 200 pF (150 pF nominal)

Internal Inductance
400 mH

Internal Resistance
470 Ω

Cartridge Mass
6.8 g

Cartridge Mass (inc. fixings)
7.8 g

Fixing Centre
12.7 mm

Playing Weight
1.75 – 2.25 g (2 g nominal)

Cartridge Height
17 mm

Recommended Tonearm Effective Mass
10 – 30 g
