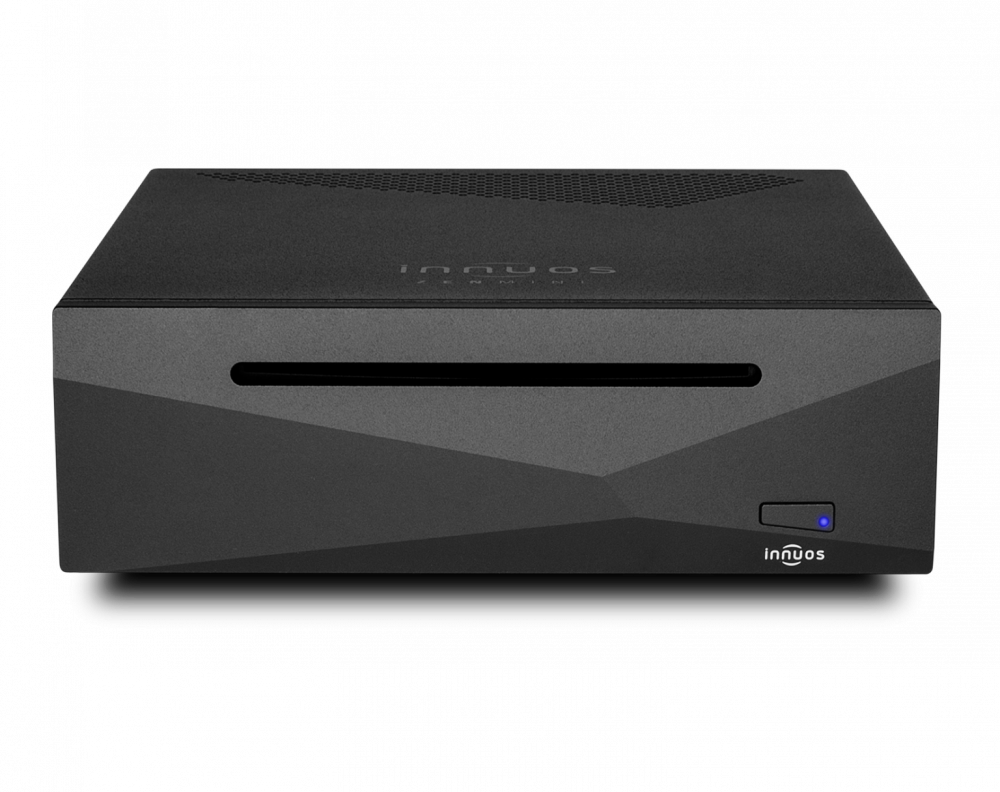

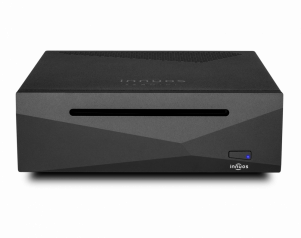

INNUOS ZENmini Mk.III
Rekommenderade produkter
Our gateway server with all the full benefits of innuOS, now with improved connectivity and an upgraded path for even greater flexibility. Ideal for simple integration into multi-room systems or for those making the first step to a dedicated audio server.
⦿ CD Ripper, NAS and Streamer
⦿ Compact design with quiet, fanless operation
⦿ Includes both analogue and digital outputs
⦿ Can be used as Roon Core (Optional)
⦿ Custom audio treated components
⦿ Upgradeable with Linear Power Supply (info LPSU)
ZENmini
Looking for a tidy solution for all your CDs and the files laying around on the computer? Need an easy way to stream and listen to all your favourite music? Now there’s a simple way to store, manage and play all of it: the ZENmini.
Convenient Design
With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs – from CD ripping to purchased downloads, Internet Radio to Spotify Connect.
Perfect CD Player replacement
Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favourite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way.
Hi-Fi Engineering
The ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.
Powerful Performer
Using our own exclusive innuOS operating system, our servers are configured and optimised from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.
Modell
ZENmini Mk.IIIVarumärke
Jämför produkt
AUDIO OUTPUTS
Digital Output
- USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
- Coaxial S/PDIF up to 24bit/192KHz
- Optical S/PDIF up to 24bit/192KHz
Analogue Output
- RCA Analogue up to 24bit/192KHz
CONNECTIVITY
Ethernet
- 2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB
- 4x USB 3.0
FORMATS
CD Formats
- Red Book
Disc Compatibility
- CD, CD-R, CD-RW
Audio format for stored CDs
- FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing
- WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs
SAMPLE RATES
Sample Rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
Bit Depths
- 16bit, 24bit, 32bit
USER CONTROL INTERFACES
Web Interface
- Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile
- App for iPhone/iPad, Android and Windows 10
HARDWARE
CD/DVD drive
- TEAC Slot-loading drive
CPU
- Intel Quad Core N4200
Memory
- Mk3 Standard 4GB / HDD
- Mk3 "S" 8GB / SSD
STREAMING AND CD STORAGE
UPnP/DLNA
- Integrated UPnP Server
Streaming Services
- Qobuz, Spotify Connect, Tidal, Internet Radio
Roon Compatibility
- Roon Core and Roon Bridge
Average CD Storage Time
- 5 minutes
CD Metadata
- FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems
- Sonos Multi-room Wireless Music System
- DLNA/UPnP compatible streamers
- USB DACs complying to USB Audio Class 2
- USB DACs supporting DSD over DoP protocol
- Selected USB DACs supporting Native DSD
REQUIREMENTS
Network
- Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
- Network router with at least one available ethernet port
- Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
POWER
Mains Supply
- Low ripple Power Adapter, 12V 5A, CEC Level V efficiency
Power Consumption
- 10W when idle, 15W peak
PHYSICAL
Dimensions
- 215mm x 245mm x 75mm (W x D x H)
Weight
- 4,5 Kg
In the box
- Innuos ZENmini Mk3 Music Server
- AC/DC Power Adapter
- Mains Cable
- 2m Ethernet Cable
- Getting Started leaflet
PHYSICAL OPTIONAL LPSU
Dimensions
- 215mm x 245mm x 75mm (W x D x H)
Weight
- 4 Kg
In the box
- Innuos ZENmini LPSU
- DC Connection cable with barrel plug
- Mains Cable
- Getting Started leaflet
