Start ›› 2-KANAL ›› VINYL ›› PICKUP / TONARMAR ›› LYRA Delos

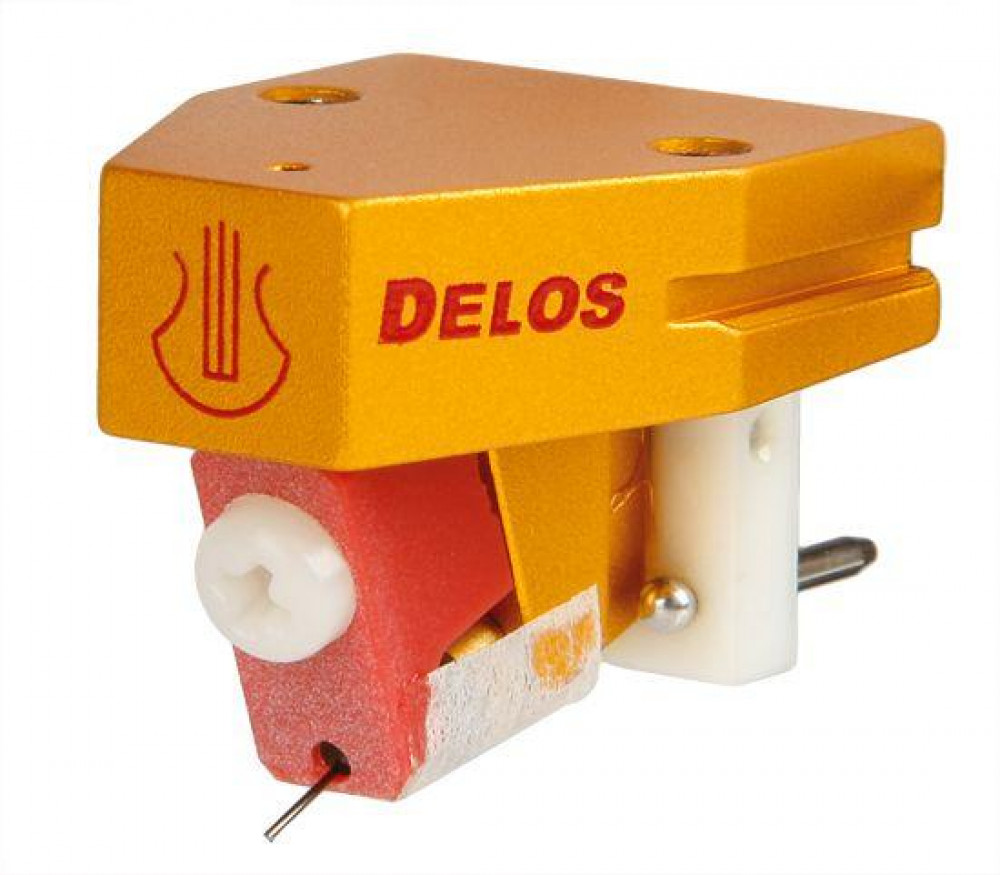

LYRA Delos

LYRA Delos

20 990 kr
klarna-logo
Lägg i varukorgen
Leverantörslager (Vanligtvis 2-5 arbetsdagar för varor som finns i lager hos leverantören.)
Fri frakt!

Produktbeskrivning

Lyra Delos

While vinyl records played back with an MC cartridge can sound exceptionally good, it is a surprising fact that the design of conventional MCs restricts the sound quality that can be achieved from LPs.

An essential factor for proper operation of an MC cartridge is the angle between the magnetic circuit, signal coils and core. Performance is optimal when the angles are all aligned, but any significant difference in the angles will cause the formation of a strong and directional flux that will flow constantly from the magnetic circuit into the signal core. This directional magnetic flux will orient the core toward a specific direction and make it impossible for the core to move with equal ease in all directions, which is necessary for proper cartridge performance.

Länk till tillverkare

Innehållet kan inte visas

Aktivera funktionella tredjepartstjänster




SPECIFIKATIONER

  • Designer: Jonathan Carr
  • Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (primary build)
  • Type: Medium weight, medium compliance, low-impedance moving coil cartridge
  • Stylus: Namiki microridge line-contact nude diamond stylus (2.5um x 75um), surface-mounted
  • Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
  • Body: Anodized aluminum
  • Coils: 3-layer deep, 6N high-purity copper, square-shaped permalloy former, 6.3ohm self-impedance, 9.5uH inductance
  • Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
  • Frequency range: 10Hz ~ 50kHz
  • Channel separation: Greater than 30dB at 1kHz
  • Compliance: Approx. 12 x 10cm/dyne at 100Hz
  • Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
  • Distance from mounting holes to stylus tip: 9.5mm
  • Cartridge weight (without stylus cover): 7.3g
  • Tracking force: 1.65g – 1.75g (1.72g recommended)
  • Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (detailed guidelines in instruction manual, finalize by listening)
  • Recommended load via step-up transformer: Use a step-up transformer designed for 5 - 10 ohms cartridge impedance (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
  • Recommended tonearms: Medium to Medium-High mass arms recommended
