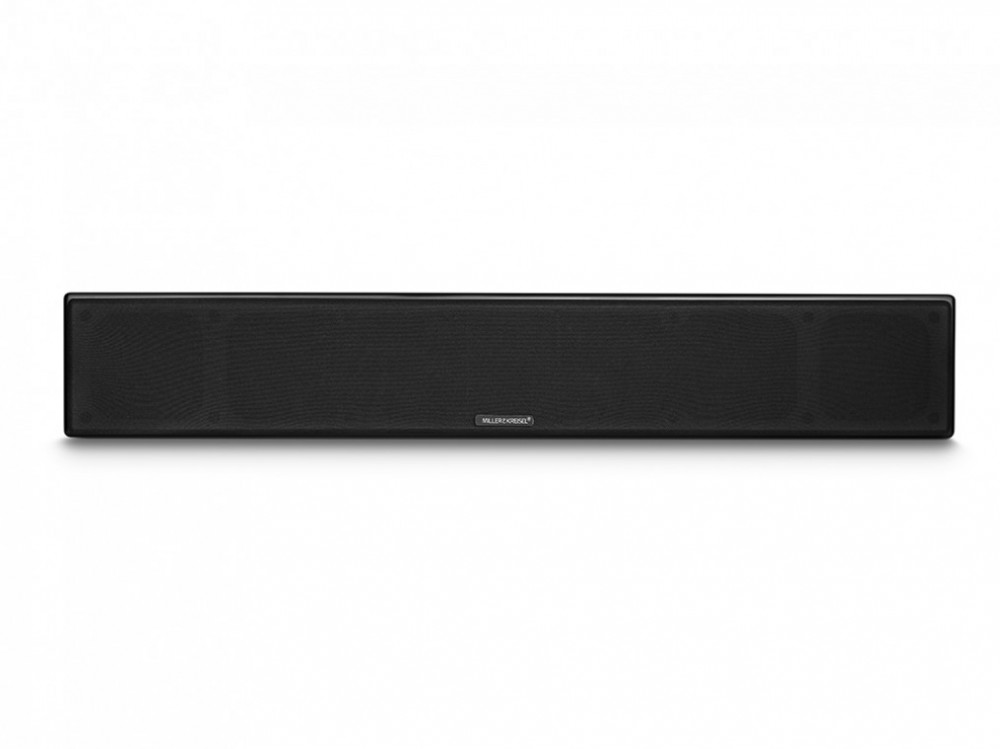

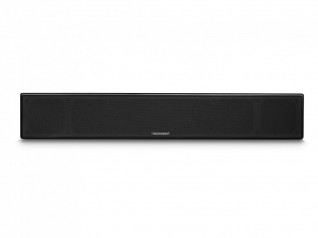

M&K SOUND M90
The NEW M90 Miller & Kreisel delivers everything and then a little more.
M90 a step-up to the M50 and M70 speakers. The décor-friendly On-Wall ultra slim and low enclosure design is the benchmark for all M Series.In the NEW M90, we have added 2 additional bass drivers, it adds both sensitivity and bass response over its brethren. Ideally suited for rooms where extra output is needed.
- The M90 has each set of woofers in their own anti-resonant acoustic chamber, the center 2 working as a midrange, and the other 2 woofers covering bass frequencies. This is to ensure minimal distortion and cabinet resonances common with slim speakers.
- The M90 is also phase aligned to operate as an ideal center channel speaker, with 100% symmetric coverage vertically and horizontally
New high-performance components:
- 1” coated silk dome neodymium tweeter.
- 4” glass fiber woofers.
In addition to the performance enhancements of the M90, it also sports a long profile, designed to match up to today’s large format flat screen TV’s for a more pleasing aspect ratio.
Available in satin paint White & Black, matching all M Series products
Nominal System Impedance
4 ohm
(Z-min 3.4 ohm)
Frequency Response:
70-20K Hz
(average response in room +/- 2 dB)
Frequency Roll Off:
70 Hz
(-10 dB 80 Hz near field wall mounted)
Crossover Frequency:
600 Hz / 2.0 KHz
“Phased focused” (2nd order) Tapered
Tweeter (shielded):
1” Dome
Coated Silk dome / Neodymium magnet
Woofer
4 x 4″
Coated Glass Fiber
Power Handling:
150 watt
Long term IEC-268-5 (cycled input 80-20K Hz)
Power Handling:
70 watt
Rated IEC-268-5 (constant input 80-20K Hz)
Recommended Amplifier Power:
25-200W
(Recommended amp power to driver speaker)
Sensitivity:
89 dB
System Princip:
Sealed enclosure
Connection:
Terminal gold plating
Screw for 5mm Cable / Banana
Accessories
Yes
Wall mount Brackets/Screws/Gloves
Welcome card
Yes
“Included in packing”
Dimensions
Dimensions
HxWxD:
31,5 x 5,1 x 3,3 inch / 80 x 13 x 8,5 cm (incl grill)
Weight:
Netto
12.40 lbs / 5.62 kg
Colors
Finish:
Painted
Black / White Satin
