110LP v2
Phono Preamplifier
Overview
Sound Quality
Developed with award-winning technologies used in our more exotic phono preamplifiers, the MOON 110LP v2 represents another leap forward in sound quality and affordability.
Dynamic
Enjoy all of the MOON sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies. This is achieved through the combination of an improved power supply and an enhanced circuit layout. Another benefit is an increased input overload margin for trouble free use.
Convenient & Flexible

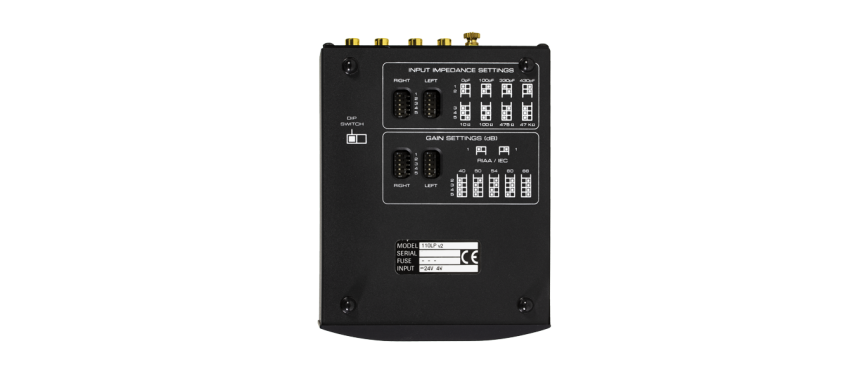

In a matter of just a few seconds, you can easily configure under the unit each of these four parameters: gain, curve, resistance and capacitance. As a result, replacing your cartridge will not render the MOON 110LP v2 obsolete.
Design features
- End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)
- End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
- End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
- End user selectable curve (IEC/RIAA)
- Four layer PCB tracings using pure copper for low impedance characteristics
- Inductive DC Filtering for a significantly lower noise floor

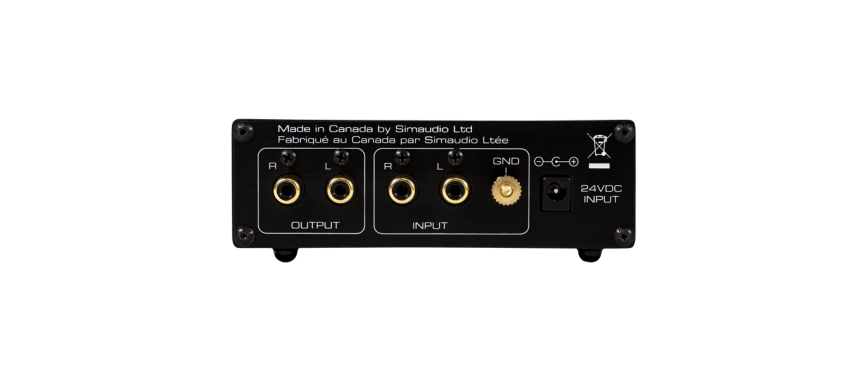

- Compact, rigid all-aluminum chassis with gold-plated RCA connectors
- Designed to be powered up at all times for optimal performance
