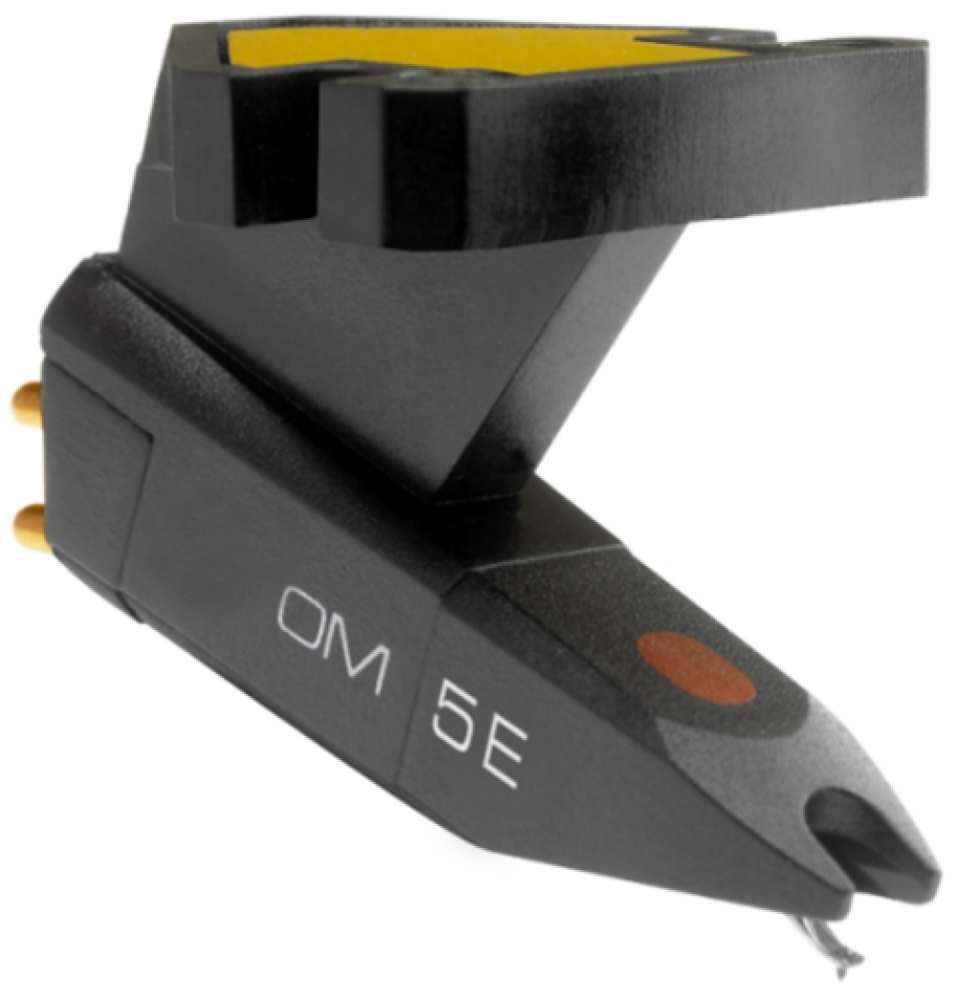

ORTOFON OM 5 E

ORTOFON OM 5 E

Leverantörslager (Vanligtvis 2-5 arbetsdagar för varor som finns i lager hos leverantören.)
Frakt från 99 kr

Fler bilder

Produktbeskrivning

MM-pickup. Elliptical Diamond.


The OM 5E is a magnetic cartridge (MM) with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications.

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate.

If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

Garanti i 24 månader

Innehållet kan inte visas

Aktivera funktionella tredjepartstjänster




Specifikation

  • Output voltage at 1000 Hz, 5cm/sec. - 4 mV
  • Channel balance at 1 kHz - 2 dB
  • Channel separation at 1 kHz - 22 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency range at - 3dB - 20-25.000 Hz
  • Frequency response - 20-20.000 Hz ± 2 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 65 µm
  • Compliance, dynamic, lateral - 20 µm/mN
  • Stylus type - Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 1,5-2,0 g (15-20 mN)
  • Tracking force, recommended - 1,75 g (17,5 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 750 Ohm
  • Internal inductance - 450 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 200-600 pF
  • Cartridge colour, body/stylus - Black/Black
  • Cartridge weight - 5 g
  • Replacement stylus unit - Stylus 5 E

*) Typical value
