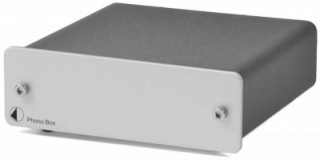

Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,...) of your amplifier.
Input impedance, MM
47kohms/120pF
Input impedance, MC
100ohms/120pF
Gain, MM
40dB
Output voltage typically
300mV/1kHz at 3mV/1kHz (MM input)
Gain, MC
60dB
Output voltage typically
300mV/1kHz at 0,3mV/1kHz (MC input)
Max. output
9,5V (1kHz)
Noise floor, MM
86dB (94dB - A weighted)
Noise floor, MC
68dB (75dB - A weighted)
THD, MM
0,01%
THD, MC
0,05%
RIAA-equalisation curve accuracy
20Hz - 20kHz / max. 0,5dB
Outboard power supply
18V/200mA DC,
suitable for your country\'s mains supply
Standby power consumption
< 1 watt
Dimensions W x H x D
103 x 36 x 103 (109 mm with sockets)
Weight
540g
