THORENS
TD 1600 TP 160
Features
Stabilized sub chassis on three conical springs
Precision pivot bearing tonearm TP 160 with SME headshell connector
Polished precision belt
Two-part machined aluminum platter
Adjustable belt tension
Electronical controlled motor
Manual lift
True balanced (XLR) and (RCA) outputs
External linear power supply TPN 1600
The TD 1600, featuring the new TP 160 tonearm, represents a consistent evolution of the TD 1600. It possesses a classic wooden plinth, a two-part machined aluminum platter with an internally run ground drive belt. The external linear power supply TPN 1600 is equipped with a high-performance toroidal transformer and provides the synchronous motor with 2x 16V to ensure the highest possible rotational stability of the platter.
The new TP 160 tonearm was developed by the renowned designer Helmut Thiele and features an ultra-precise knife edge bearing. This J-shaped 9" tonearm with an SME headshell connection takes inspiration from the design of famous studio tonearms. The blade for the horizontal bearing is additionally stabilized by magnets to ensure the most precise tracking of the vinyl record.
The three springs of the subchassis do not hang from the top board but rest on the floor. Simultaneously, a tensioned steel thread extending from the motor pulley axis to the turntable axis prevents lateral tilting and ensures the subchassis swings as piston-like as possible.

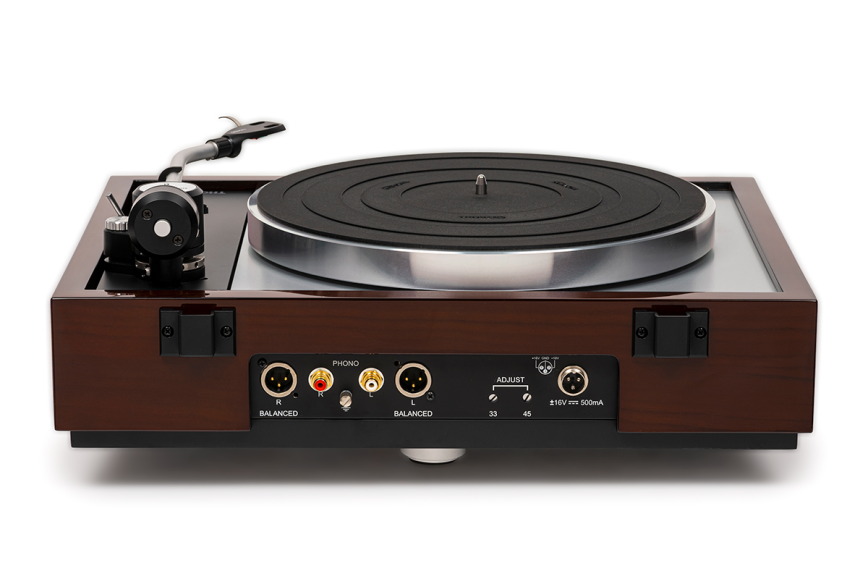

The balanced outputs (XLR) ensure a professional connection. Since the phono signal needs significant amplification, it is particularly susceptible to electrical interference. The balanced connection via the XLR sockets ensures the least possible interference-free connection between the turntable and the phono preamplifier. To utilize the True Balanced Connection, the turntable must be equipped with a moving coil (MC) cartridge.
