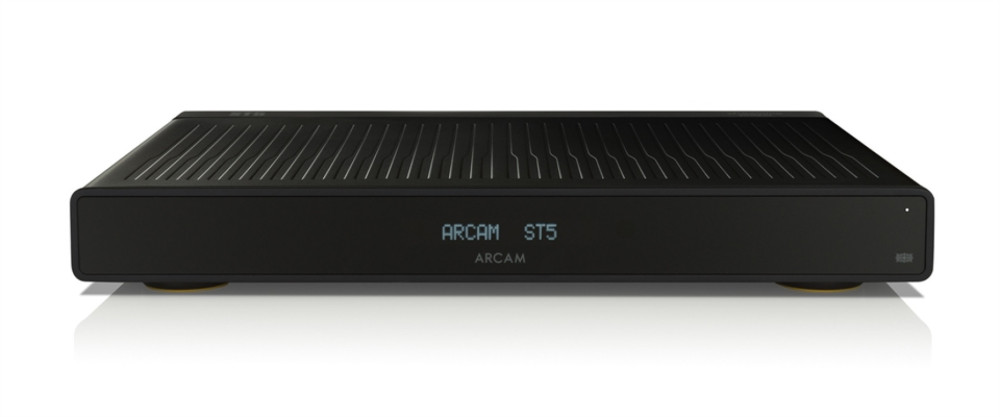

The ARCAM ST5 is the high resolution upgrade for our Radia integrated amplifiers. The slim form factor includes a control link to these amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination off ers better sound quality due to the benefits of isolated components with individual power supplies.
The ARCAM ST5 provides an inclusive feature set supporting the majority of smart phones and tables, as well as popular streaming services. Connect the ST5 to your home network with Wi-Fi or Ethernet to enjoy instant playback using Apple Airplay2 or Google Chromecast.
The ST5 will playback music directly from Spotify Connect and Tidal Connect, and for power users, the ST5 is Roon Ready, all with Hi-res and MQA support. All digital audio is output on the analogue outputs using an ESS ES9018 high resolution DAC with time domain jitter elimination for perfect sound, every time.

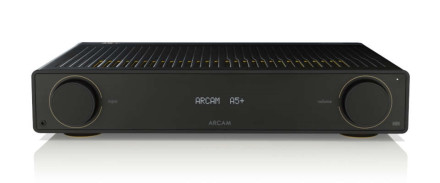

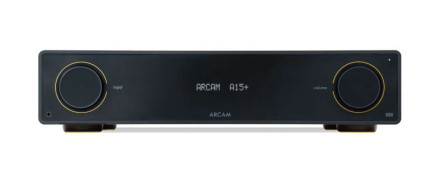

- Perfect match to ARCAM A5 and A15 - with comms link for 2 components to work together
- Works with Spotify Connect and Tidal Connect - for direct connection from your preferred music service
- Works with new ARCAM app - for Wi-Fi setup and internet radio presets - includes Qobuz, Amazon Music and Podcasts
- Specially selected components and materials - to deliver on sound quality
- Supports Apple Airplay2 and Chromecast built-in - works with all Apple and Android phones and tablets Roon Ready
- Supports Hi-Res Audio - up to 24 bit / 192 kHz from digital and analogue outputs
- Plastic Free Packaging - for easy disposal of natural materials
Type: Streamer / Network Media Player
Supported Hi-res media: FLAC, WAS (LPCM), MQA, AAC, ALAC, AIFF, DSD (128)
Supported Hi-res Bit depth: 16, 24
Supported samples rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
Supported media: MP3, MP4, OGG, WMA
Supported Bit depth: 16
Supported samples rates (kHz): 44.1, 48
Gapless Playback: Yes
Digital Outputs: 1x Coaxial (RCA), 1x Optical (Toslink)
Analogue Outputs: 1x Stereo (RCA) pair
Frequency response (fi lter 1): 20Hz—20kHz ± 0.05dB
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption 12W
Power consumption (Eco standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 57mm
Weight (net) 3.5 kg
Weight (packed) 5.6 kg
Supplied accessories:
Mains lead(s)
Remote control with 2 x AAA batteries
Control Cable
Quick Start Guide
Important Safety Instructions
