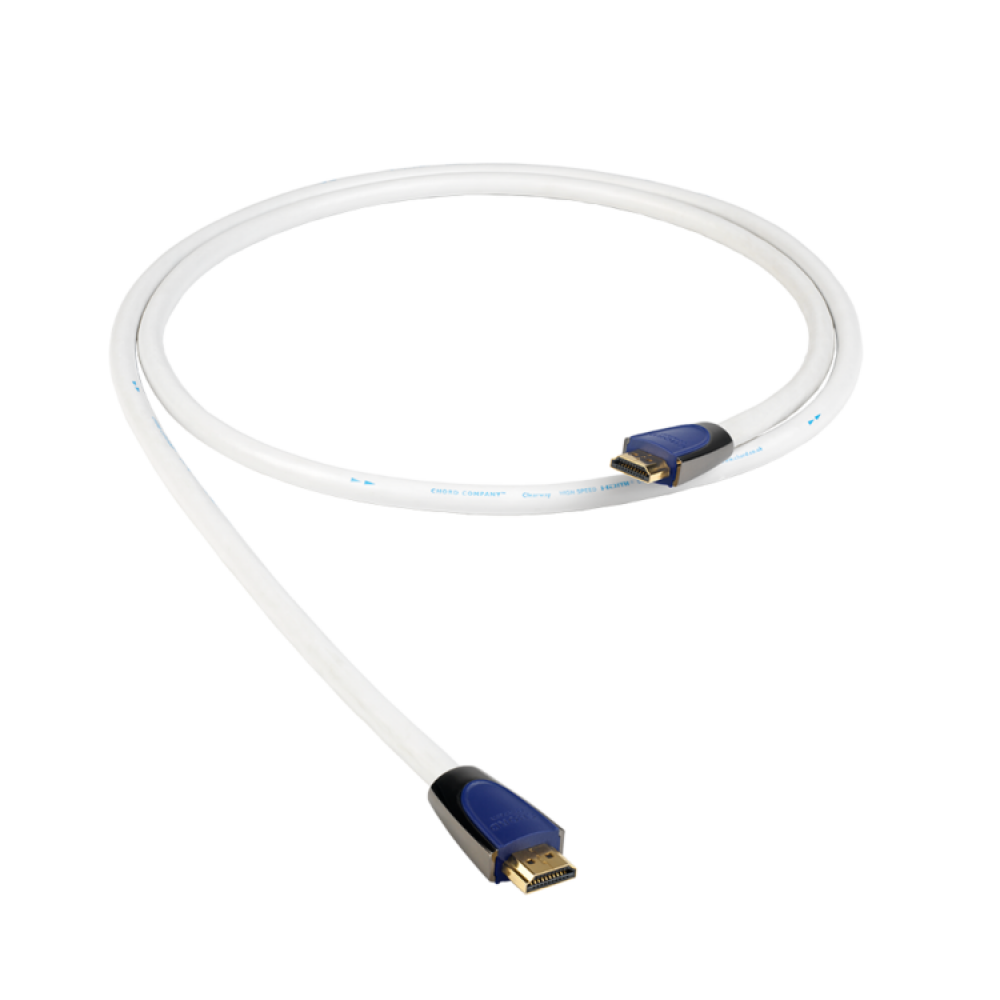

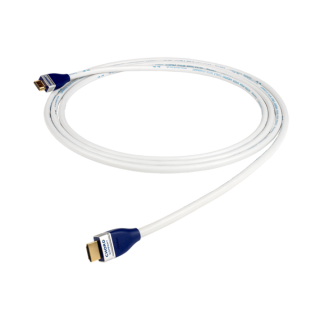

CHORD COMPANY Clearway HDMI
Chord Company Clearway HDMI cable takes materials and shielding to the next level, with nickel-shielded plugs, increased bandwidth and thicker high-quality copper conductors coated with a skin/foamed polyethylene insulation.
Five pairs of conductors are individually internally shielded, with the overall bundle further protected by a twin aluminium foil outer screen. These construction improvements allow us to offer longer runs with this range (0.75m, 1.5m, 2m, 3m, 5m, 8m and 10m).
Clearway HDMI supports 4K2K, 60Hz 18GBps HDR, HDCP2.2, Deep Colour, Ethernet/audio return, 1080p, 3D and all HDMI audio formats.
The HDMI performance standard is one of the fastest-moving in our industry. HDMI (High Definition Multimedia Interface) cables carry high-frequency signals alongside a 5-volt DC electric supply. These complex multi-purpose interconnects tend to be longer than most other cables in a system, with the possible exception of speaker cables.
Today’s high-technology house contains many devices producing high-frequency (HF) noise. Cables often act as aerials picking up this noise. Unfortunately, the longer the cable the better aerial it becomes. These unwanted high-frequency signals can penetrate unprotected cables and end up on the signal earth. To preserve these delicate signals, all Chord Company HDMI cables feature high-efficiency HF screening to minimise the noise pick-up.
Modell
Clearway HDMIVarumärke
Jämför produkt
- HDMI CTS certification Premium high-speed
- Bandwidth 18GBps
- Resolution 4K
- Dynamic range HDR
- Operating distance up to10m
- Audio performance rating (Chord Co standard) OO--
- Primary conductors Solid 25AWG OFC
- Insulation Foam-PE
- Shielding Braiding & AL foil
- Cable Jacket PVC
- HDMI connector shell Gold-plated copper
- HDMI connector pins 19-pin gold-plated copper
- Termination Hand soldering
- HDMI connector backshell PVC & zinc alloy
- Cable diameter 8.2mm
