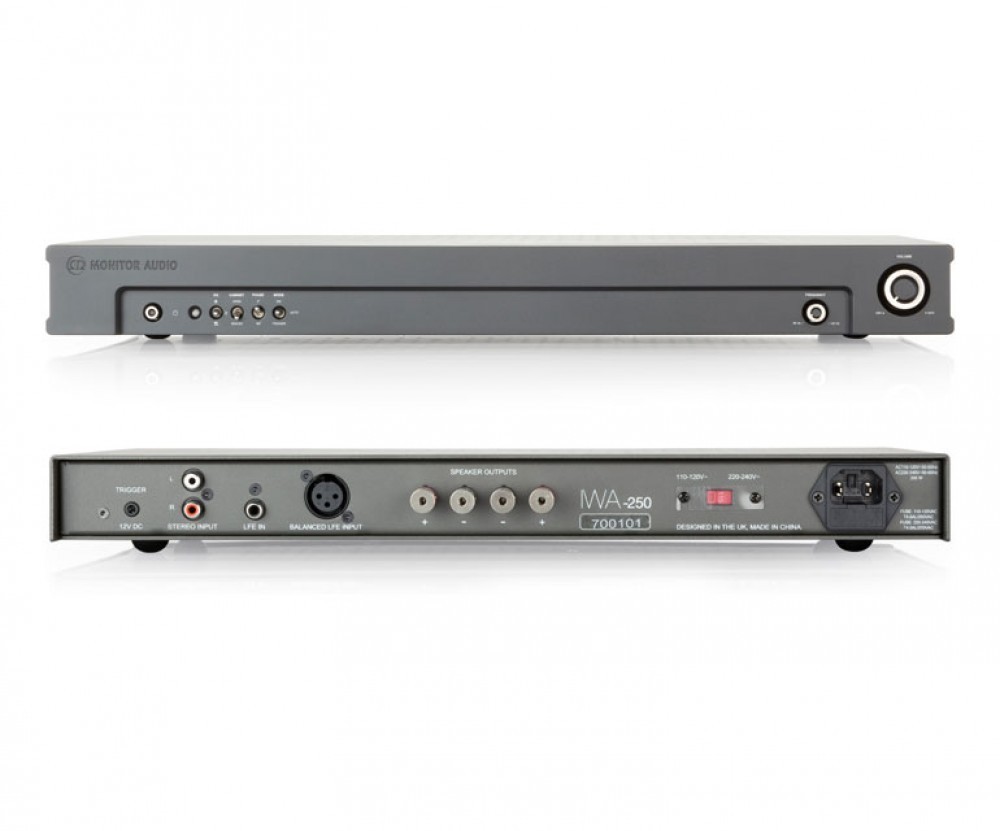

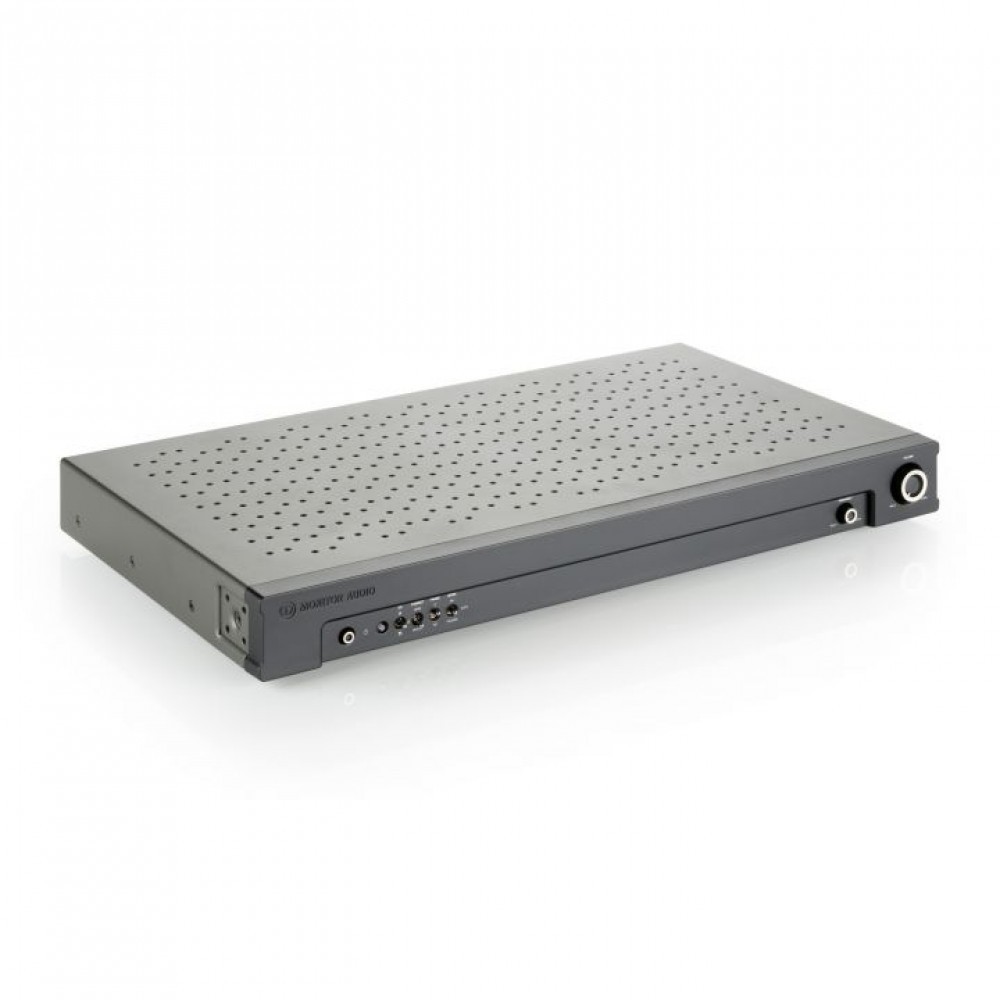

The IWA-250 switch mode amplifier is a slim, powerful dedicated design in a heavy-duty 1U rack mount case. Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10s to provide higher power levels for larger rooms or to meet customer demands.
Created to add deep bass frequencies to architectural speaker systems, our InWall Subwoofer design is an amalgam of sophisticated IWS-10 subwoofer driver, IWA-250 amplifier and IWB-10 back box.
The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box. It features Monitor Audio’s patented Tri-Grip® clamping system and paintable trim-less grille and frame edge.
The IWB-10 is a sealed pre-construction back box designed to fit between standard 14” stud spacing and comes supplied with adjustable steel fixing brackets. While providing the ideal environment for the driver, the IWB-10 will also reduce the radiation of sound to adjacent rooms. For easier installation, the IWB-10 is pre-wired with external terminals.
Completing the trinity is the IWA-250 switch mode amplifier - a slim, powerful design in a heavy-duty 1U rack mount case. Delivering up to 250watts into 4 ohms, a single IWA-250 will power single or dual IWS-10s to provide higher power levels for larger rooms or to meet customer demands. The IWA-250 has input signal sensing, or is triggered from an AVR or other system source.
Construction
3mm thick fabricated steel case, moulded ABS front trim panel
Low Frequency Response
25 Hz-120 Hz
Maximum Power Output
250 W @ 4 Ohms
Dimensions (H x W x D)
43.7 x 432 x 263mm
