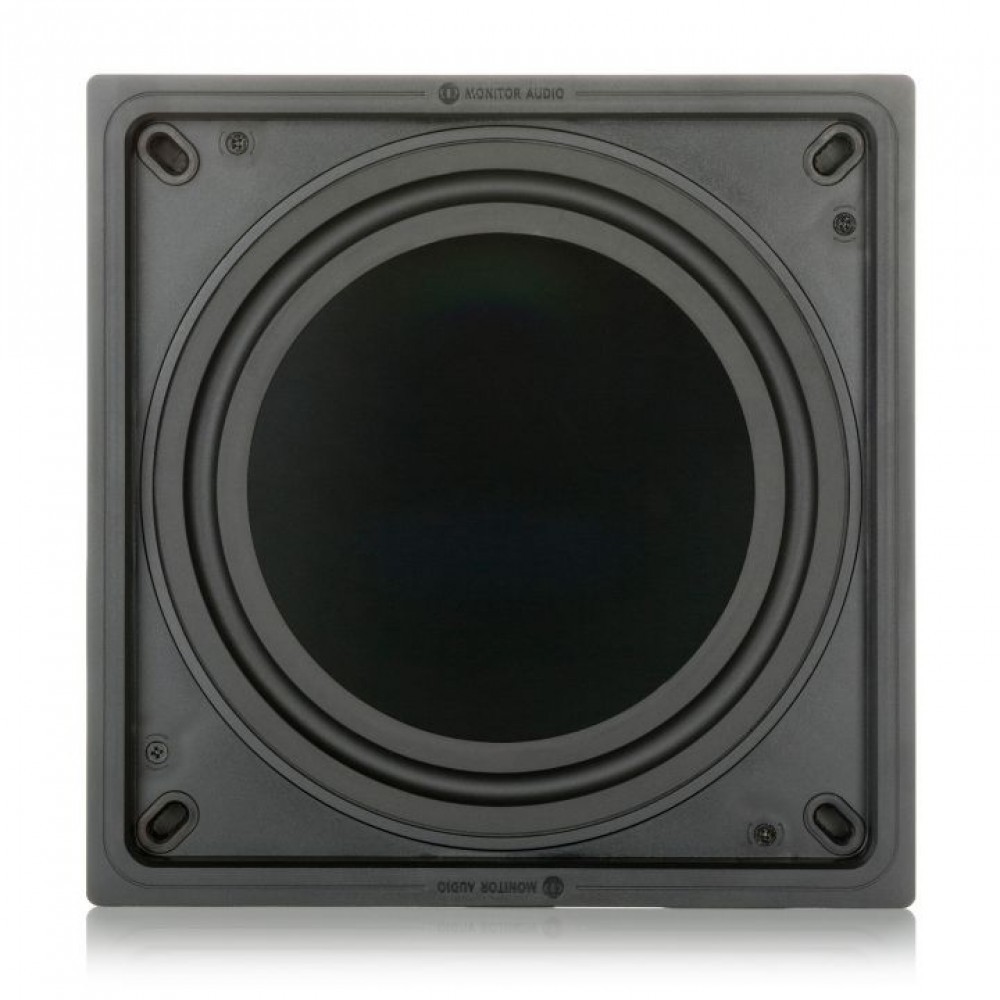

The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10mm (3/8”) RDT® material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.
Created to add deep bass frequencies to architectural speaker systems, our InWall Subwoofer design is an amalgam of sophisticated IWS-10 subwoofer driver, IWA-250 amplifier and IWB-10 back box.
The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box. It features Monitor Audio’s patented Tri-Grip® clamping system and paintable trim-less grille and frame edge.
The IWB-10 is a sealed pre-construction back box designed to fit between standard 14” stud spacing and comes supplied with adjustable steel fixing brackets. While providing the ideal environment for the driver, the IWB-10 will also reduce the radiation of sound to adjacent rooms. For easier installation, the IWB-10 is pre-wired with external terminals.
Completing the trinity is the IWA-250 switch mode amplifier - a slim, powerful design in a heavy-duty 1U rack mount case. Delivering up to 250watts into 4 ohms, a single IWA-250 will power single or dual IWS-10s to provide higher power levels for larger rooms or to meet customer demands. The IWA-250 has input signal sensing, or is triggered from an AVR or other system source.
Frequency Response
28 Hz – 120 Hz
(when mounted in optimum enclosure)
Impedance (Nominal)
8 Ohms
Sensitivity (1W@1M)
86 dB
Maximum SPL (Partnered with IWA-250)
Single unit 109.8 dB; Pair 115.8 dB
Power Handling
150 W
Cut-Out Hole Dimensions
280 x 280 mm
(11 x 11 inches)
Mounting Depth
89.98 mm
(3 1/2 inches)
Fixing Type
4 position Tri-Grip® dog leg fixings
Connection
Gold plated \"push\" type terminals
Construction Materials
Mineral Filled ABS Plastic
(RoHS2 Compliant)
Overall Dimensions (H x W x D)
302 x 302 x 92.28 mm
117/8 x 117/8 x 35/8 Inches
Overall Dimensions With Grille (H x W x D)
314.21 x 314.21 x 100.78 mm
123/8 x 123/8 x 315/16 inches
