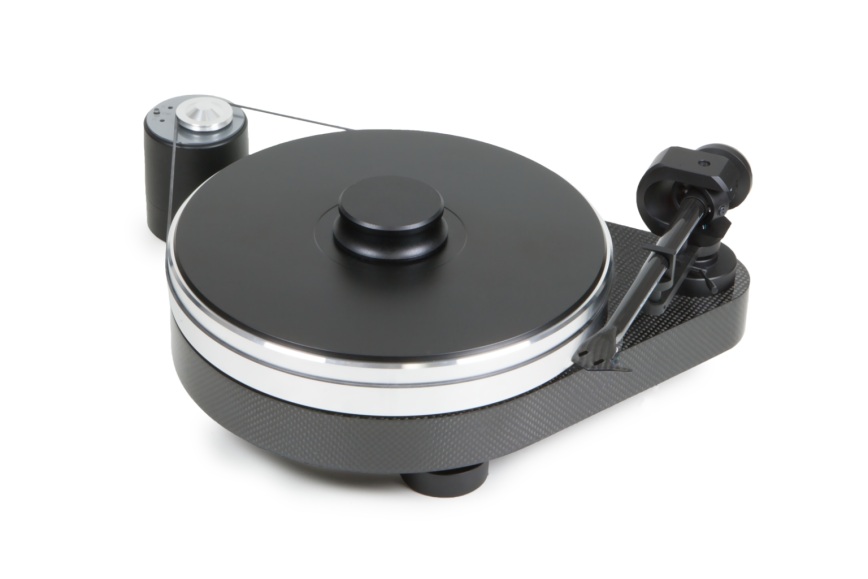

RPM 9 Carbon
High-end turntable with 9“ Evo tonearm
Beautiful and clever design: Carbon surface & 7,2 kg platter
The RPM 9 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centered. Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble. The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least the non-compromise 9“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges.
The RPM 9 Carbon is available with or without Ortofon Quintet Bronze cartridge. Highly flexible top-grade copper internal wiring. Delivered with topgrade 5P phono cable „Connect it CC“ with RCA plugs (XLR as an option).
In the box:
- RPM 9 Carbon (with or without Ortofon Quintet Bronze)
- Connect it 5P-CC Phono Cable
- Record puck
- Adapter for 7“ singles
- Power supply, spirit level
Features
- Advanced sandwich construction of plinth with combination of MDF, carbon fibre and steel pellets
- Plinth manufactured with thermo treatment
- Mass loaded subchassis design with magnetic feet
- Inverted main bearing with ceramic ball/plate
- 7,2kg acoustically inert aluminium platter with TPE damping and vinyl mat on the top
- DC power supply with AC motor
- Precise DC driven AC generator (Speed Box) built-in
- Electronic speed control with 33/45 rpm switching
- Outboard motor construction with massive steel base
- Pre-mounted 9“ Evolution tonearm
- 5P Connect it Phono CC cable with RCA plugs (XLR available as an option)
