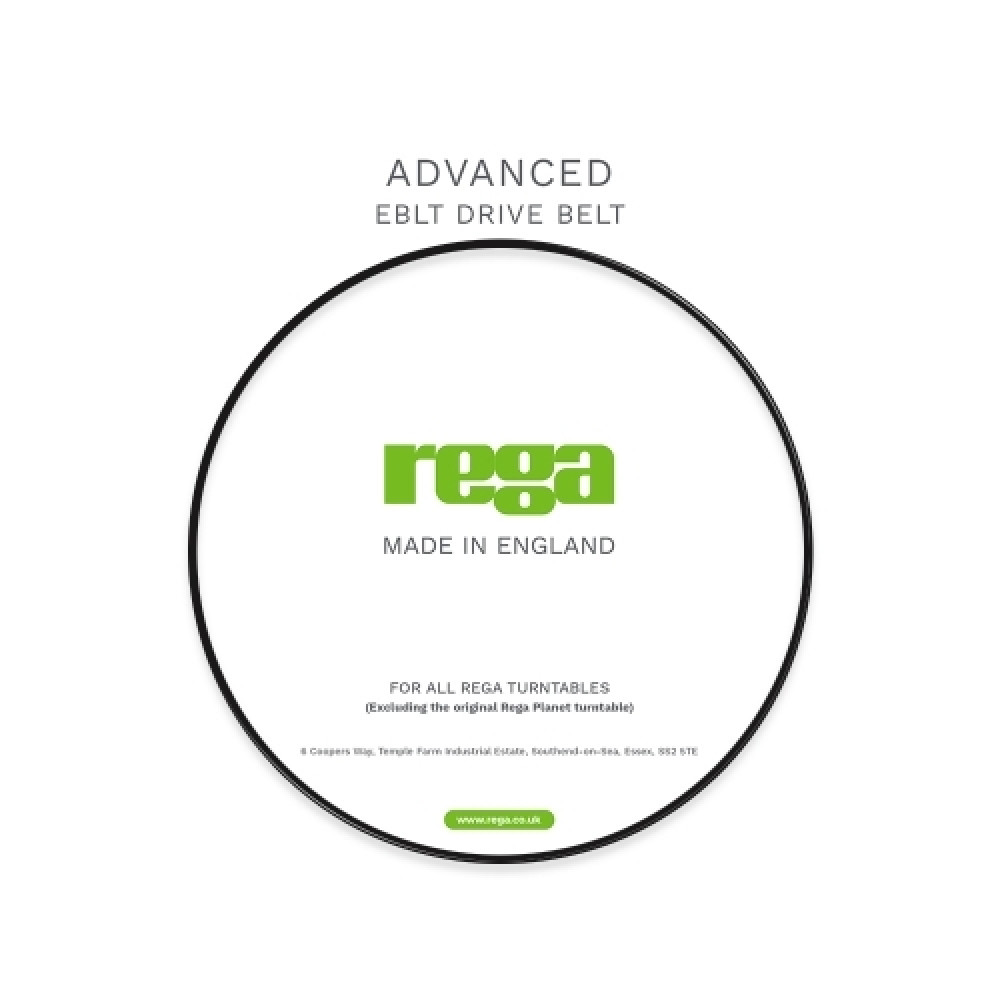

The advanced EBLT drive belt is fitted as standard to all Planar 1, Planar 1 Plus, Planar 2, Planar 3 and Planar 6 models.
Each belt is moulded on our highly accurate custom tooling using a unique secret blend. Once moulded, the belts are cryogenically frozen and barrelled to remove any excess flash in order to create perfect cross sectional roundness which is critical for accurate speed and stability. In normal use and conditions, the lifespan of the EBLT drive belt is 50% longer than the previous model.
Below you can see a direct comparison taken from our custom test software. You can compare the old belt (top) versus the latest EBLT reference belt (bottom). We have used the same Planar 1 turntable. The only part that has changed is the drive belt. You can clearly see a notable reduction in weighted peak Wow / Flutter measurements produced by the increased accuracy and cross sectional roundness of the EBLT belt. The standard belt measures 0.253% / the Advanced EBLT measures 0.162% and the Reference EBLT measures 0.075%
