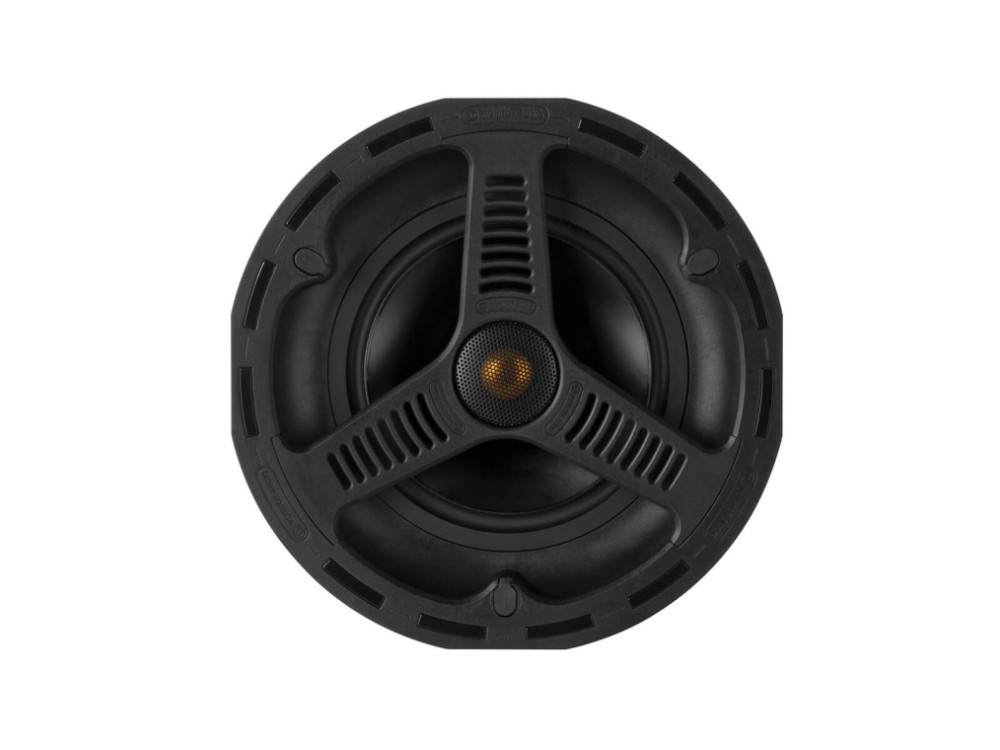

AWC265
Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC265 comprises a stylish two-way 6 1/2” C-CAM bass driver.
Technology
Quick and easy installation
High Performance C-CAM bass and high frequency drivers
Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
Frequency Response: 60 Hz — 30 kHz
Sensitivity (1W@1M): 88 dB
Nominal Impedance: 8 ohms
Maximum SPL: 105.8 dBA
Power Handling (RMS): 60 W
Recommended Amplifier Requirements: 20 — 60 W
Drivers: 6.5" C-CAM cone bass driver1" C-CAM Gold Dome tweeter (fixed angle)
Controls: HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Adjustment Controls: 2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille): 251.71 mm (915/16")
Overall Depth (Including Grille): 93.5 mm (31/2")
Cut-Out Hole Diameter: 211 mm (81/4")
Mounting Depth: 88.5 mm (31/2")
Optional Square Grille - Outer Dimensions: 249 x 249 mm (9 3/16")
Fixing Type: 3 position Tri-Grip dog leg fixings
Construction Material: Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille: SS430 Stainless Steel
Magnets: Samarium Cobalt
Operating Temperature Range: -34° to 79° C -29° to 174° F
Weight: 2.04 kg (4 lb 8 oz)
Pre-Construction Bracket: CM-B
Back Box: CSM-BOX
