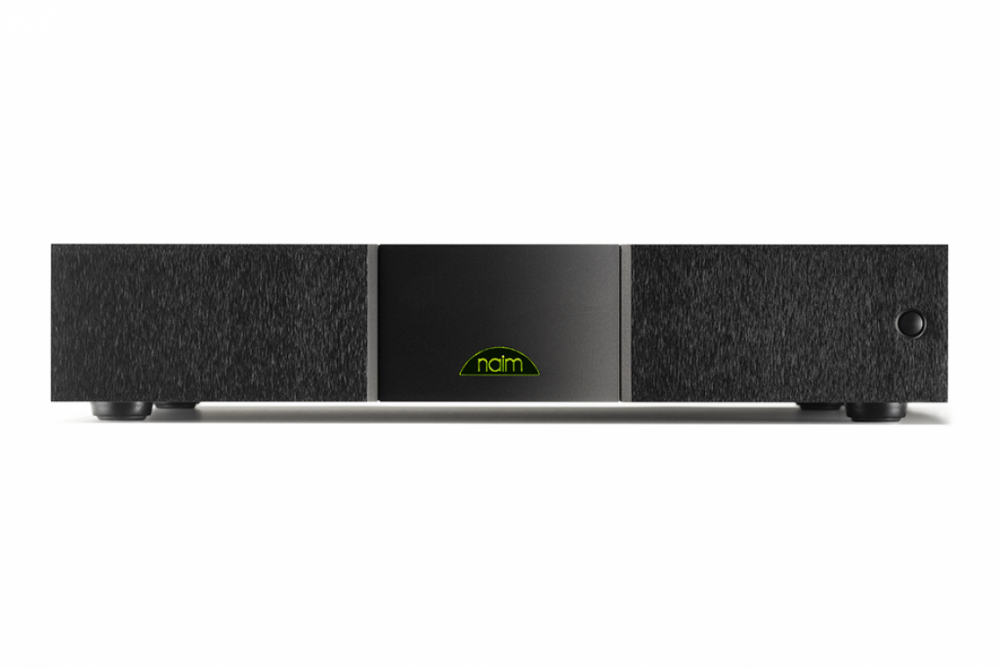

NAIM SuperCap DR
As iconic as it is widely acclaimed, the SuperCap DR is a Naim Audio classic, capable of powering every preamplifier in our range except for the NAC-N 172 XS and our flagship, the NAC 552. Its substantial toroidal transformer and high-quality smoothing capacitors combine to ensure improved timing, clarity and dynamic range from your favourite music.
Upgraded with our new DR voltage regulator, this timeless component remains one of the most well know and oft-employed power supplies in our range, and for good reason.
Features
13 x 24V outputs, 2 x 12V output
All-new Discrete Regulator (DR) configuration, delivering Naim Audio’s best-ever standards of stable, low-noise power
Brushed, black-anodised aluminium chassis
Technology & Craft
Each of the multiple power outputs on the SuperCap DR uses Naim Audio's specially designed discrete regulators for optimum performance. The SuperCap DR can be used to power all of the Naim Audio preamplifier (except the NAC 552 and NAC-N 172 XS), Superline phono stage and active crossovers, and is the only choice for supplying power to the NAC 252 preamplifier.
Its anti-vibration, resonance-controlling feet complement the elegant new cast and extruded anti-magnetic chassis to protect the sensitive internal components from resonance and microphonic vibration.
The SuperCap DR was updated in 2012 as a result of a two year project to develop a new discrete regulator (DR) for Naim Audio power supplies. The new Naim Audio DR now features, alongside improvements to the wire routing, mechanical decoupling and internal layout. These enhancements, developed through intensive listening tests, significantly raise performance and make music even more communicative and enjoyable.
OutputsPower Outputs
13 x 24V, 2 x 12V
UpgradesOther
Power-Line
PowerMains Supply
100V, 115V, 230V; 50 or 60Hz
PhysicalDimensions (HxWxD)
87 x 432 x 314 mm
Weight
11.6 kg
Shipping Dimensions
240 x 590 x 500 mm
Shipping Weight
14.2 kg
FinishFront
Brushed and black anodised
Case
Black powder coated
