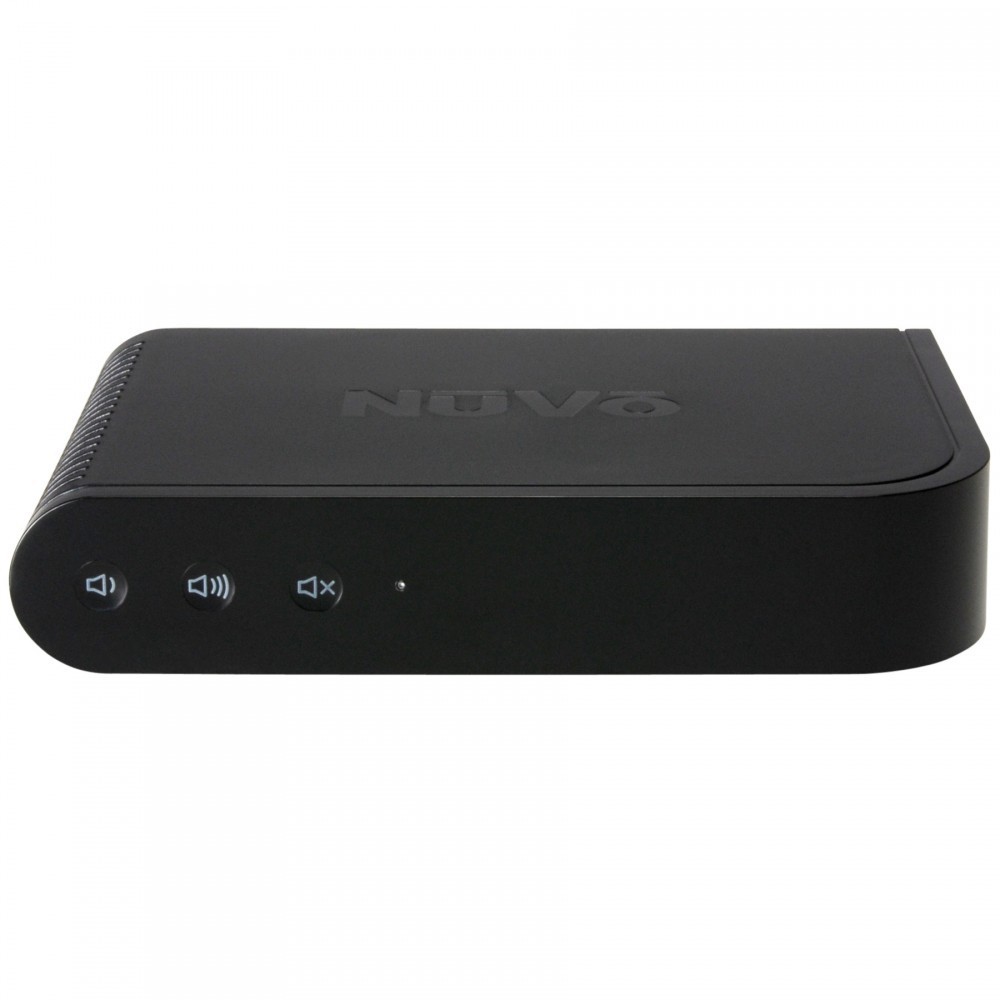

With the P100 wireless player, give a room of your home instant access to endless music options, whether from your personal collection or from the expansive libraries of Internet Radio, always delivered in incredible fidelity.
Flexibility, meet high fidelity. Expertly engineered to deliver 40 watts of
high-fidelity audio, built-in listening variety and allowing for both wired and
wireless setup, the P100 player is ideal for introducing music into hard-towire
homes or easily adding zones to an existing Player Portfolio system.
• High-fidelity audio is delivered to every area of
your home, and kept perfectly in sync.
• Compatible with Legrand’s other Nuvo Player Portfolio products for
a truly custom, easily expandable system (up to sixteen zones).
• Supports both wired ethernet and wireless 802.11n
configuration options adding flexibility for any home.
• Includes 802.11n wireless capability and utilizes both 2.4
and 5 Ghz bands, for fast signals and broad coverage.
• All your favorite music is right at your fingertips with easy
access to networked computers, streaming Internet Radio, and
even audio content stored on any Android or iOS device.
• Connect to storage devices, analog equipment, or home theater
receivers through the unit’s audio line-in, line-out, or USB ports.
• Manage your music via the convenient wall-mounted
P10 keypad or wirelessly from the palm of your hand
with free apps for your Apple or Android device.
Line Input 1 - TRS 3.5 mm stereo jack
Line Output 1 - TRS 3.5 mm stereo jack
Speaker Output 4 - Gold 5-way binding post
USB 2.0 Connection (Type A) 1
Local Area Network (LAN) 1 - RJ45
Supported Audio Formats
Music File (via USB or network) MP3
Internet Radio: Pandora
IP Control Apple iTouch®
LAN (Wired Connection) 10/100base-t Ethernet
Wireless Connection MIMO, 2 TX + 2 RX Channels
Wi-Fi Alliance CERTIFIED™
Rated Output Power (8 ohm) 40W (20W x 2)
Two channels driven 20 Hz – 20 KHz @ 0.5% distortion
Rated Distortion (1/2 Power) 0.20%
Speaker Impedance 6 – 8 ohms
Frequency Response (20 - 20kHz) +/-0.5 dB
Damping Factor 50+
Signal-to-Noise Ratio at rated output94 dB A – weighted
Output Level 0-1000 mV RMS
Output Impedance 5 Ohms
Signal-to-Noise Ratio at rated output88 dB A – weighted
Input Impedance 10 KOhms
Input Overload 2.3 V RMS
Bass Equalization +/-12 dB range
Treble Equalization +/-12 dB range
Safety cTUVus, CE-LVD
EMC FCC, IC, CE-EMC, C-Tick
Environmental Compliance RoHS
Input Voltage 100 – 240VAC, 50/60 Hz
Power Consumption (max) 70 W
Power Consumption (typical – 1/8 audio power) 13 W
Operating Temperature 0° C to 40° C
Unit Size (mm) 43 H x 187 W x 137 D
Unit Size (inch) 1.69 H x 7.36 W x 5.39 D
Unit Weight (kg) 0.635
Unit Weight (pounds) 1.40
Unit Size (mm) 240 L x 230 W x 66 H
Unit Size (inch) 9.45 L x 9.06 W x 2.60 H
Unit Weight (kg) 1.25
Unit Weight (pounds) 2.75
Languages Supported English, Spanish, French
Portuguese, German, Italian
Legrand reserves the right to change specifications without notice.
