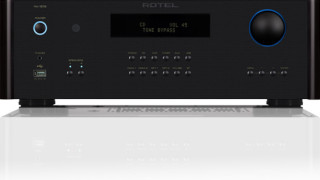

The RA-1572 combines proven analogue design with sophisticated digital circuits to bring all of your sources to life with amazing fidelity.
Engineered with care.
Dimensions (W × H × D)
431 × 144 × 358mm17" × 5.7" × 14.1"
Front Panel Height
3U / 132.6mm (5.25")
Power Requirements
230V, 50Hz
Power Consumption
400W
Standby Power Consumption
<0.5W
Net Weight
13kg (29lbs.)
BTU Rating (4Ω, 1/8th power)
810 BTU/h
Continuous Power Output
120W/Ch (All channels driven, 8Ω)
Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.03%
Frequency Response
Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 90kHz ±2dB
Phono Input: 20Hz - 20kHz ±0.5dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 100dB
Phono Input: 80dB
