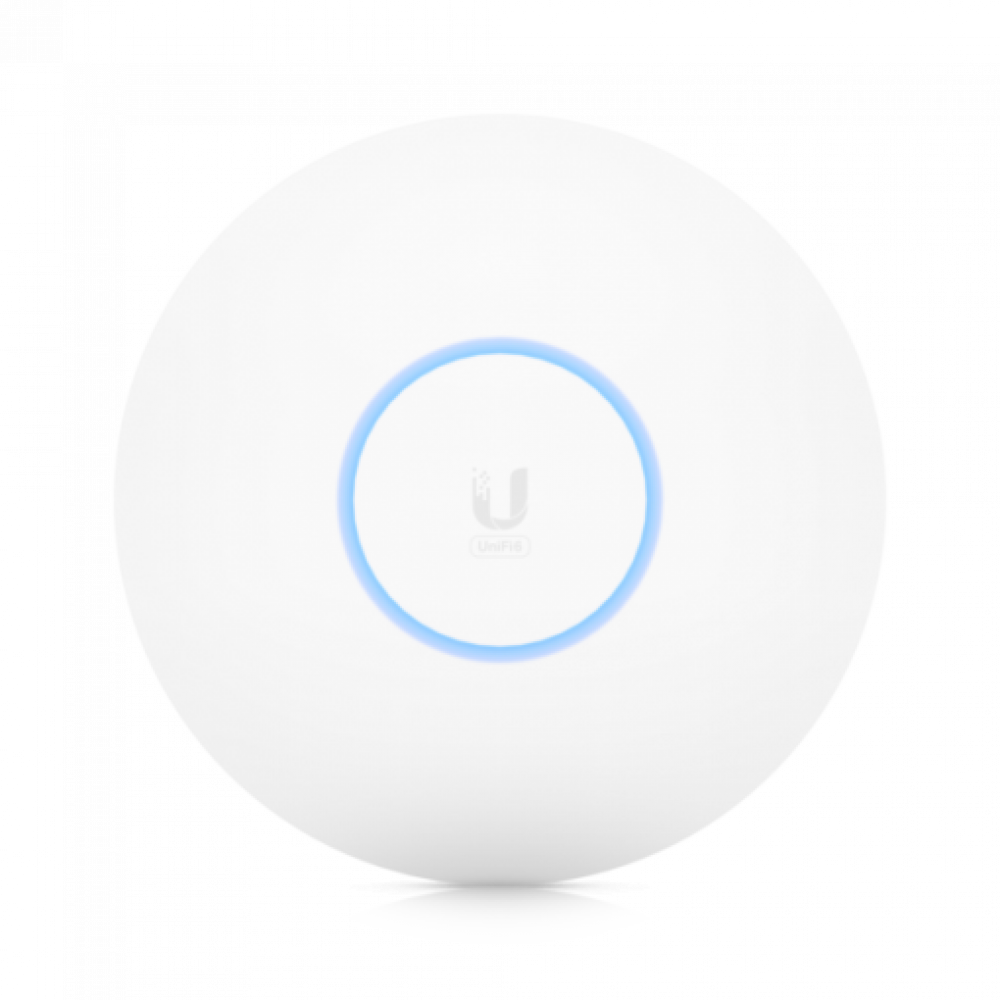

UBIQUITI NETWORKS UniFi6 Pro
Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.
The UniFi6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application*.
Features:- Dual-band WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- 300+ concurrent client capacity
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
- Included universal mounting plate, backing plate, and screw kit
Mechanical
Dimensions Ø197 x 35 mm (Ø7.76 x 1.38")
Weight Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb)
Enclosure material Plastic
Mounting material SGCC steel
Weatherproofing IP54
Hardware
Management interfaces Ethernet
Bluetooth
Networking interface (1) GbE RJ45 port
Button Factory reset
LED* White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Power method PoE+
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (not included)
Supported voltage range 44 to 57VDC
Max. power consumption 13W
Max. TX power
2.4 GHz
5 GHz
22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
4 dBi
6 dBi
Mounting Wall/ceiling (included)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero wait DFS Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
