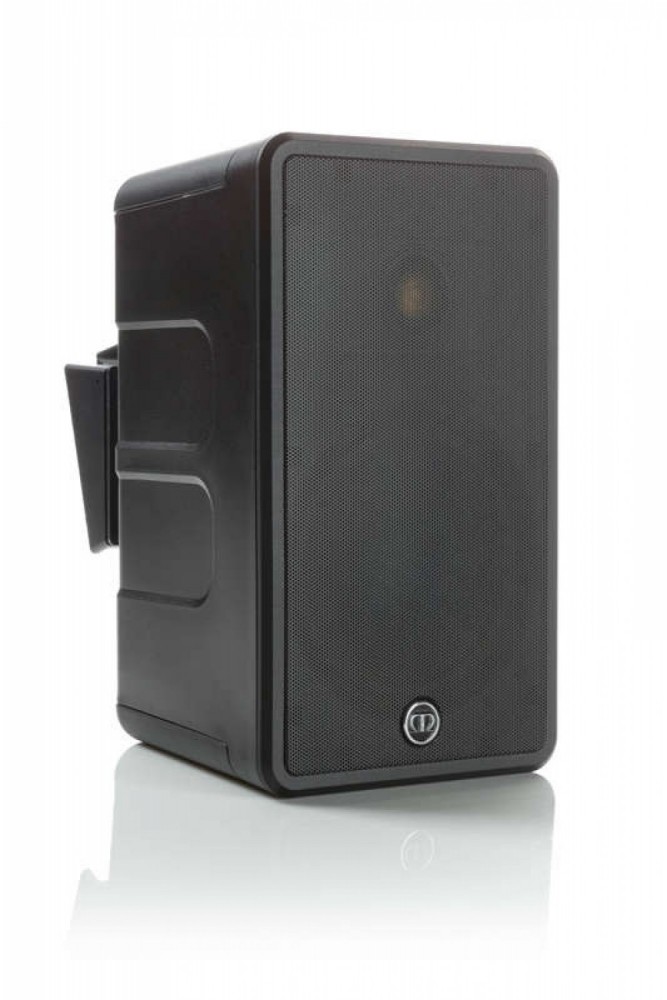

2-Way outdoor IP55 rated satellite speaker, housing a single 6 1/2" C-CAM® bass driver and a 1" C-CAM gold dome tweeter.
Featured in a recent installation.
With the advent of our versatile CL range, no environment is beyond the reach of great sound, whatever the weather! Engineered for easy installation and loaded with driver technology derived from our globally respected residential speaker ranges, the CL speaker line delivers true hi-fi quality sound outside the home or in wet areas inside.
The range comprises three two-way satellites and a single stereo model. All have a robust, sealed, IP55 rated high density polypropylene design, available in a paintable white or black finish, which protects CL's precision-engineered C-CAM drivers. Smart weather-proof aluminium grilles complete the look.
The CL range can be installed in any combination to provide a wide and even dispersion of full-range sound over large areas, augmented by low frequencies from an Auxiliary Bass Radiator (ABR) in each cabinet.
Frequency Response
63Hz - 30KHz
Sensitivity (1W@1m)
88 dB
Impedance (nominal)
8 Ohms
Maximum S.P.L dBA (per pair)
108.8
Power Handling (RMS)
100W
Amplifier Requirements (RMS)
15 - 100W
Drivers
1 x 165mm (6 1/2”) C-CAM® bass/ mid-range driver
1 x 25mm (1”) C-CAM® gold dome tweeter
External Dimensions: (H x W x D)
325 x 185 x 178.5 mm
External Dimensions: (H x W x D)
12 13/16 x 7 5/16 x 7 inches
Total Depth Including Wall Bracket mm (inches)
235 (9 1/4)
Total Bracket Pivot Angle
87.5 degrees (from central position)
Fixed Angled Block (portrait orientation)
15 degrees
Cable Connection
Gold plated \'push\' type terminals
Environmental Protection Rating
IP55
Finishes Available
White/Black
Weight Packaged: kg
4.62 (10lb 2oz)
